Equipment Main Function
1.After flattening under small rate of reduction, The CR strip coil will be eliminated certain amount of stress and yield point elongation, while in stretching and punching, the strip coil “slip line” will not appear.
2.After annealing, CR coil strip go through temper which can better improve the strip flatness(coil shape) and surface roughness.
3.By adjusting reduction rate of temper which can have certain range of variation on mechanical property
of coil strip, thus made the hardness and plasticity of coil strip could apply for different functional
requirements.
Equipment Component And Feature
Hydrauli ccoil car, Shear, Uncoiler, Front and back S roller, Clean brush roller, Skin pass (tempering mill), Anti-wrinkle roller, Recoiler, Unloading car, Motor, Electric control, Hydraulic APC system, Hydraulic and lubricate devices, etc.

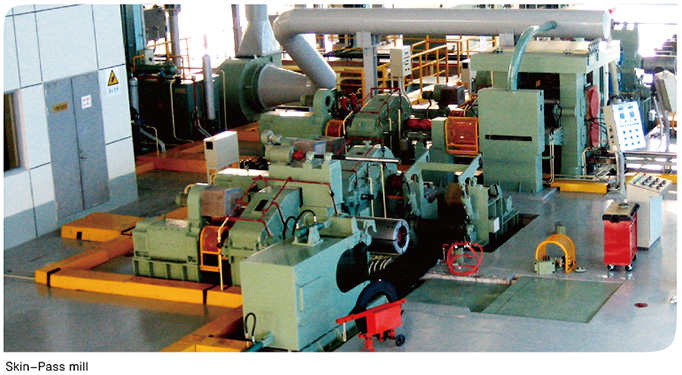

Equipment Photos
Technical Parameter Table
Technical parameter
\Mill model |
650 |
750 |
850 |
1000 |
| Material |
Normal carbon steel, stainless steel |
| Material thickness(mm) |
0.16-1.5 |
0.3-0.8-1.5 |
0.3-0.8-1.5 |
0.3-1.5 |
| Material width(mm) |
550 |
650 |
750 |
900 |
| Elongation rate % |
0.2-3.0 |
0.2-3.0 |
0.2-3.0 |
0.2-3.0 |
| Line speed(m/min) |
180-300 |
180-300 |
180-400 |
240-600 |
| Tempering mill type |
2 roll or 4 roll |
2 roll or 4 roll |
4 roll |
4 roll |
| Tempering force(KN) |
1450 |
1700 |
2000 |
2500 |
| Driving method |
working roll driving |
Hydraulic station
pressure(MPa) |
10 |
10 |
10 |
10 |
| Main motor |
Z4 series(omit) |
Z4 series(omit) |
Z4 series(omit) |
Z4 series(omit) |
| Uncoiler motor |
Z4 series(omit) |
Z4 series(omit) |
Z4 series(omit) |
Z4 series(omit) |
| Recoile rmotor |
Z4 series(omit) |
Z4 series(omit) |
Z4 series(omit) |
Z4 series(omit) |
| S roller motor |
Z4 series(omit) |
Z4 series(omit) |
Z4 series(omit) |
Z4 series(omit) |
Remark：the model and parameter shown in this table are for reference only. The design and production can be tailor-made according to user's requirements. |
